SLIP ROLL MACHINE 305 MM
Art.:
7303-00
SLIP ROLL MACHINE 305 MM is available to buy in increments of 1
Description

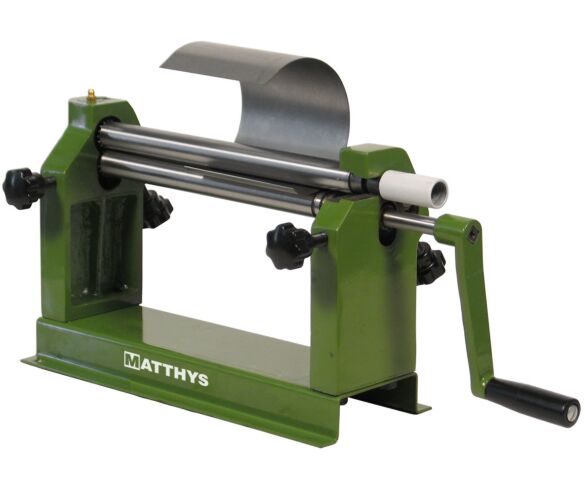

This roll machine transforms metal sheets in a certain curve or radius. Ideal for making tubes, cones, cylinders, half-rounds, ...
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
- Diameter of the rollers: 25.4 cm
- Max. working width: 305 mm
- Max. capacity when using mild steel: 0.8 mm; using galvanised steel lowers the max. capacity.
- Weight: 13 kg
- Dimensions packing incl.: 54 x 24 x 28 cm
The machine features a cast iron frame on a steel sheet foot. The upper roll can be tilt over to facilitate the removal of the rolled work-piece. Rolling is done by a crank on the side of the machine.
The front and back rolls are separately adjustable so conical pieces can be made. These rolls are also equipped with a groove for wire rolling.
- Diameter of the rollers: 25.4 cm
- Max. working width: 305 mm
- Max. capacity when using mild steel: 0.8 mm; using galvanised steel lowers the max. capacity.
- Weight: 13 kg
- Dimensions packing incl.: 54 x 24 x 28 cm
